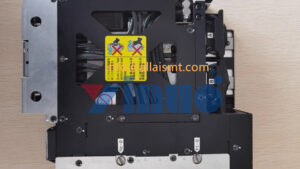

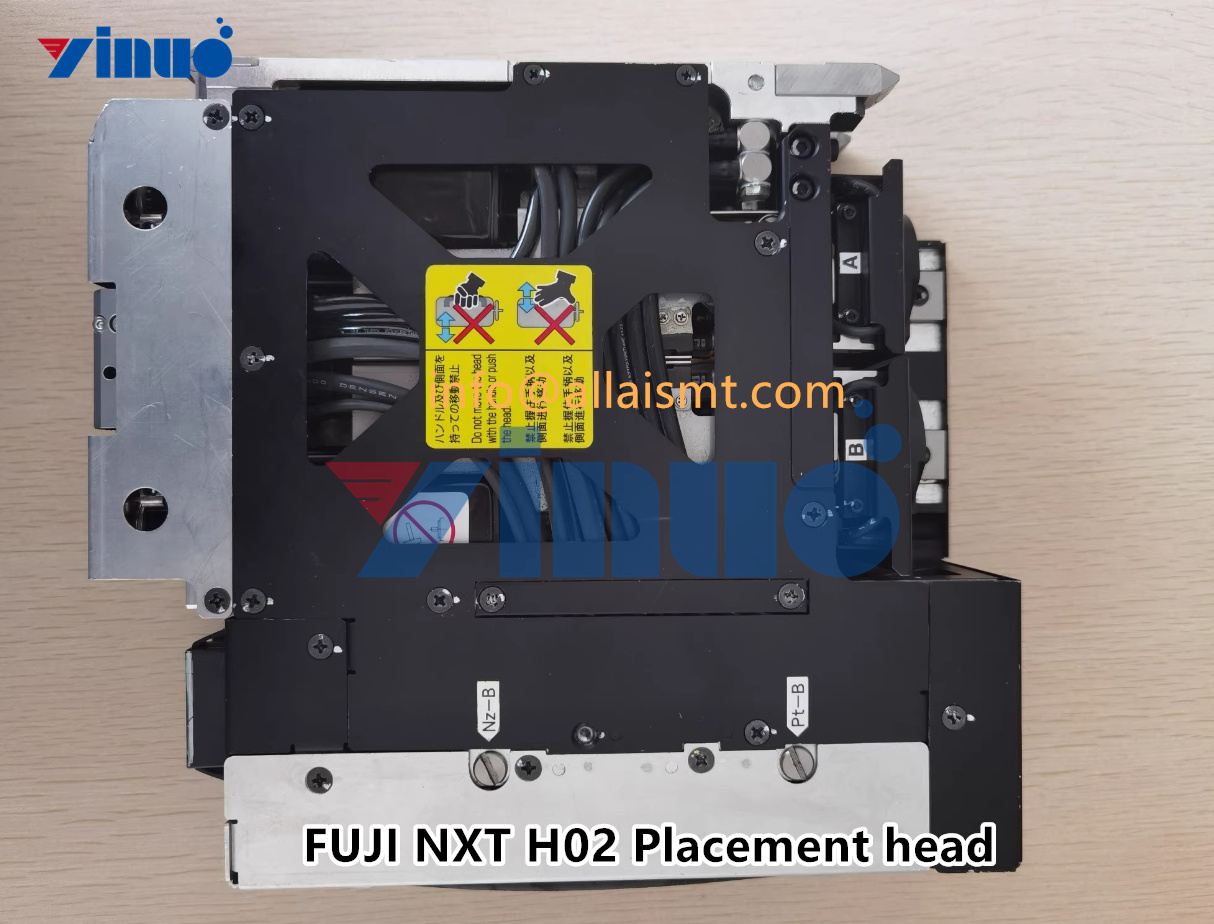

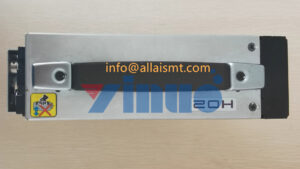

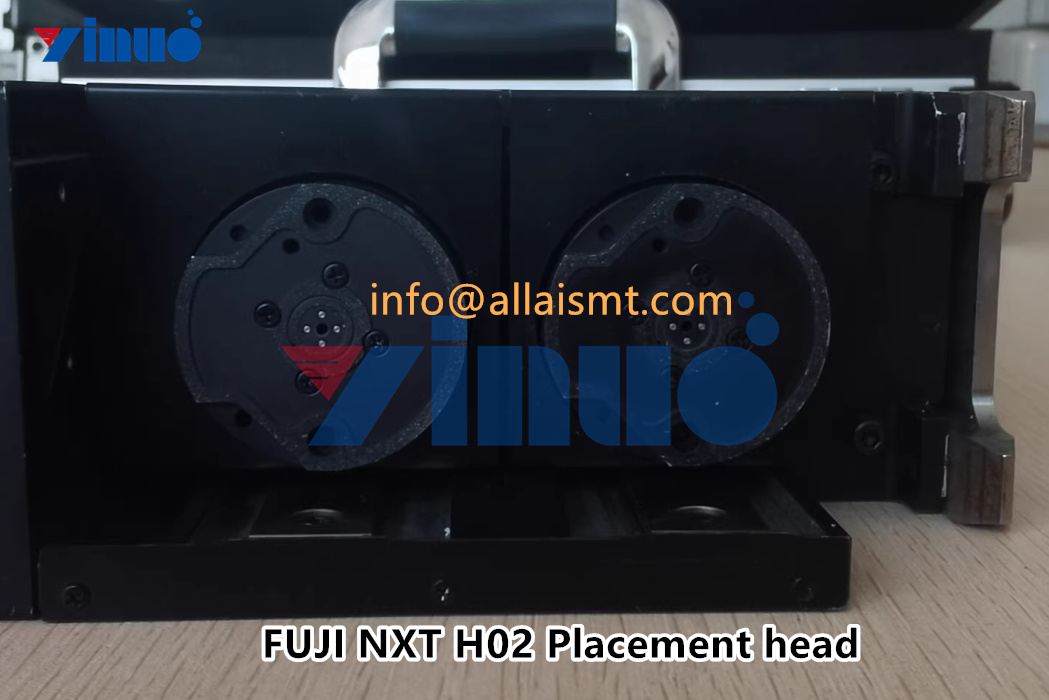

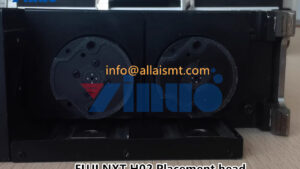

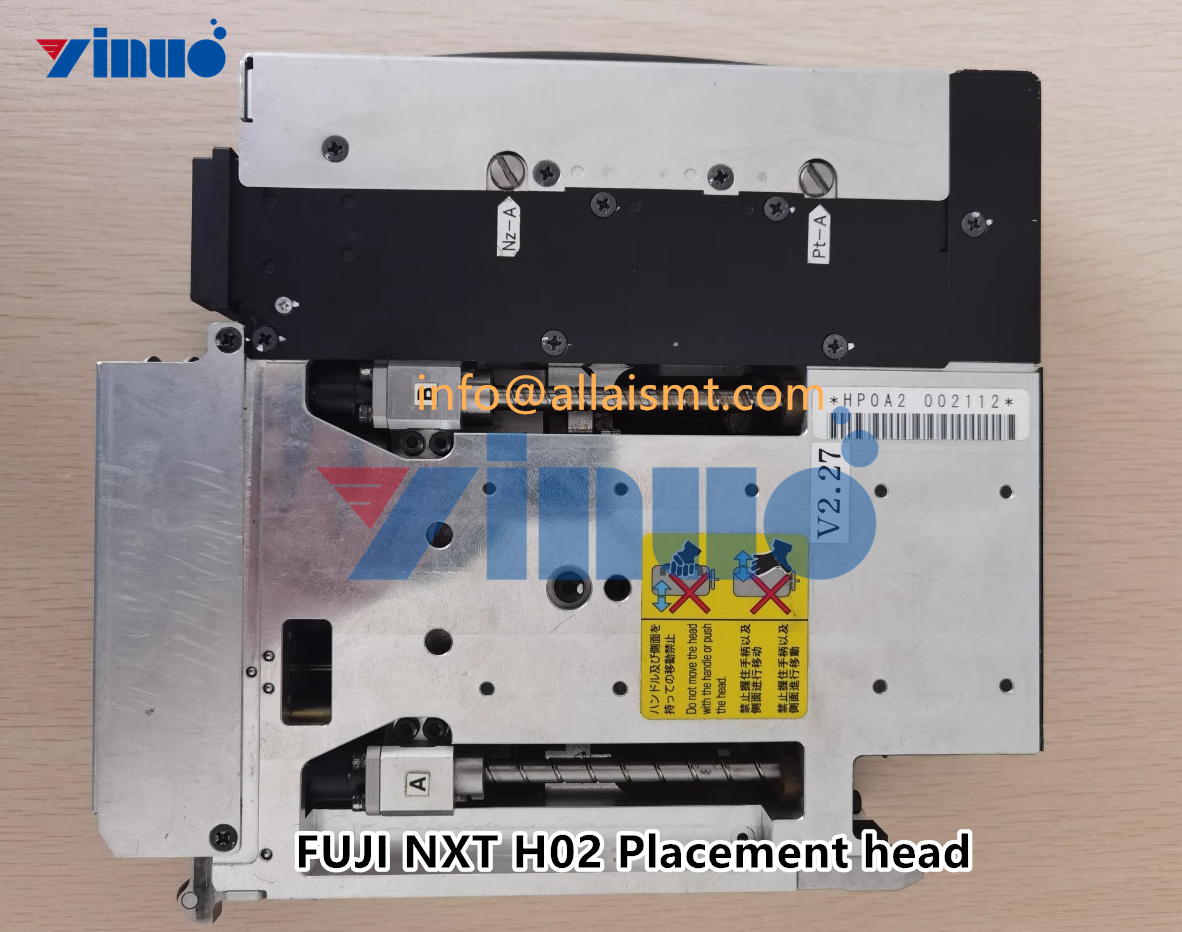

FUJI NXT H02 pick and place machine Placement head | SMT Pick-up and Placement Machine

Brand:

SKU: FUJI NXT H02 pick and place machine Placement head Categories: , Tags: ,

Key Specifications & Features

Number of Nozzles: Equipped with 2 nozzles, allowing simultaneous handling of two components for improved placement efficiency.
Applicable Component Sizes: Standard Components: 1608 (0603”) to 74 × 74mm
Connectors: 32mm × 180mm
Maximum Placement Height: 25.4mm
Compatible Models: NXT III, NXT IIIc, AIMEX III, AIMEX IIIc
Placement Accuracy and Speed ​​(Standard Mode): Placement Accuracy: ±0.03mm (Cpk≥1.00)
Maximum Placement Speed: 5500 CPH

Features
Non-rotating nozzle design suitable for placing larger components.
Primarily used for precise placement of various electronic components in SMT production lines.

We offer mail-in repair and sales for FUJI, Panasonic, Universal, Siemens placement heads and servo boxes.

Get a free quote

Please feel free to tell us what you need! we are here to help!

    Contact us via email

    [email protected]

    Find Us

    Baoan, Shenzhen,China

    Call us

    +86 18820465640
    FUJI NXT H02 pick and place machine Placement head

    FUJI NXT H02 pick and place machine Placement head

    FUJI NXT H02 pick and place machine Placement head

    FUJI NXT H02 pick and place machine Placement head

    FUJI NXT H02 pick and place machine Placement head

    FUJI NXT H02 pick and place machine Placement head

    FUJI NXT H02 pick and place machine Placement head

    2MGKHH000201COVERPB016D3COVER,UPPER
    H5268TBOLT,HEX SOCKETK5186RSCREW,C/R COUNTERSUNK
    W1020HWASHER,LOCKPB98263COVER,SIDE
    PB88940RETAINERK5186RSCREW,C/R COUNTERSUNK
    H5263MBOLT,HEX SOCKETK5170XSCREW,C/R COUNTERSUNK
    W1039FWASHER,FLATPB98283BKT.,RETAINER
    PB88923RETAINER,WIRINGH5265ABOLT,HEX SOCKET
    H5263NBOLT,HEX SOCKETW1020AWASHER,LOCK
    W1039FWASHER,FLATPB94722COVER
    PSO3122SHEETK5199YSCREW,WASHER ASS`Y
    2MGKHH000301COVERXK04691BOARD,PRINTED CIRCUIT
    H5268TBOLT,HEX SOCKETS3228SSPACER
    W1020HWASHER,LOCKW1021AWASHER,LOCK
    PB88950RETAINERW1040RWASHER,FLAT
    H5263MBOLT,HEX SOCKETPS03231SHEET
    W1039FWASHER,FLATS3272XSPACER
    PB88933RETAINER,WIRINGPB86148COVER,SIDE
    H5263NBOLT,HEX SOCKETK5186RSCREW,C/R COUNTERSUNK
    W1039FWASHER,FLATK5170OSCREW,C/R COUNTERSUNK
    PB96283COVERPB83472BKT.,RETAINER
    H5264ABOLT,HEX SOCKETXB03124VALVE UNIT
    PB005A1RETAINER,WIRINGK5186RSCREW,C/R COUNTERSUNK
    K51749SCREW,C/R PANPB98243COVER
    W1039FWASHER,FLATK5186RSCREW,C/R COUNTERSUNK
    PSO3200SHEETT50032HANDLE
    PB96293COVERPM0F1Y1SPACER
    H5264ABOLT,HEX SOCKETK5358ASCREW,HEX SOCKET COUNTERSUNK
    PB004T1RETAINER,WIRINGPB98253COVER,LOWER
    K51749SCREW,C/R PANK5186RSCREW,C/R COUNTERSUNK
    W1039FWASHER,FLATXS01582SENSOR
    PB99013BKT,COVERA4068HELBOW
    K5173KSCREW,C/R PANA4068GELBOW
    W1020HWASHER,LOCKS4033GSENSOR,PRESSURE
    W11081WASHER,FLATPX08531NAMEPLATE
    PB83163BKT,SENSORPX05132NAMEPLATE,CAUTION
    H5264ABOLT,HEX SOCKETPX09460NAMEPLATE
    W1020AWASHER,LOCKH1021HBATTERY
    S40583SENSORA4067RELBOW
    S3070LSLITN2030TNIPPLE
    P252230BOLT,HEX SOCKETN2140DNIPPLE
    PB83205COVERR2031BRING
    H5264ABOLT,HEX SOCKETXH00940FILTER
    W1020AWASHER,LOCKK10577COVER
    PB83152BKT,SENSORA5054ZO RING
    K5180FSCREW,C/R PAN
    W1020AWASHER,LOCK
    PB83142BKT,SENSOR
    K5180FSCREW,C/R PAN
    W1020AWASHER,LOCK
    PB99003BKT,COVER
    K5173KSCREW,C/R PAN
