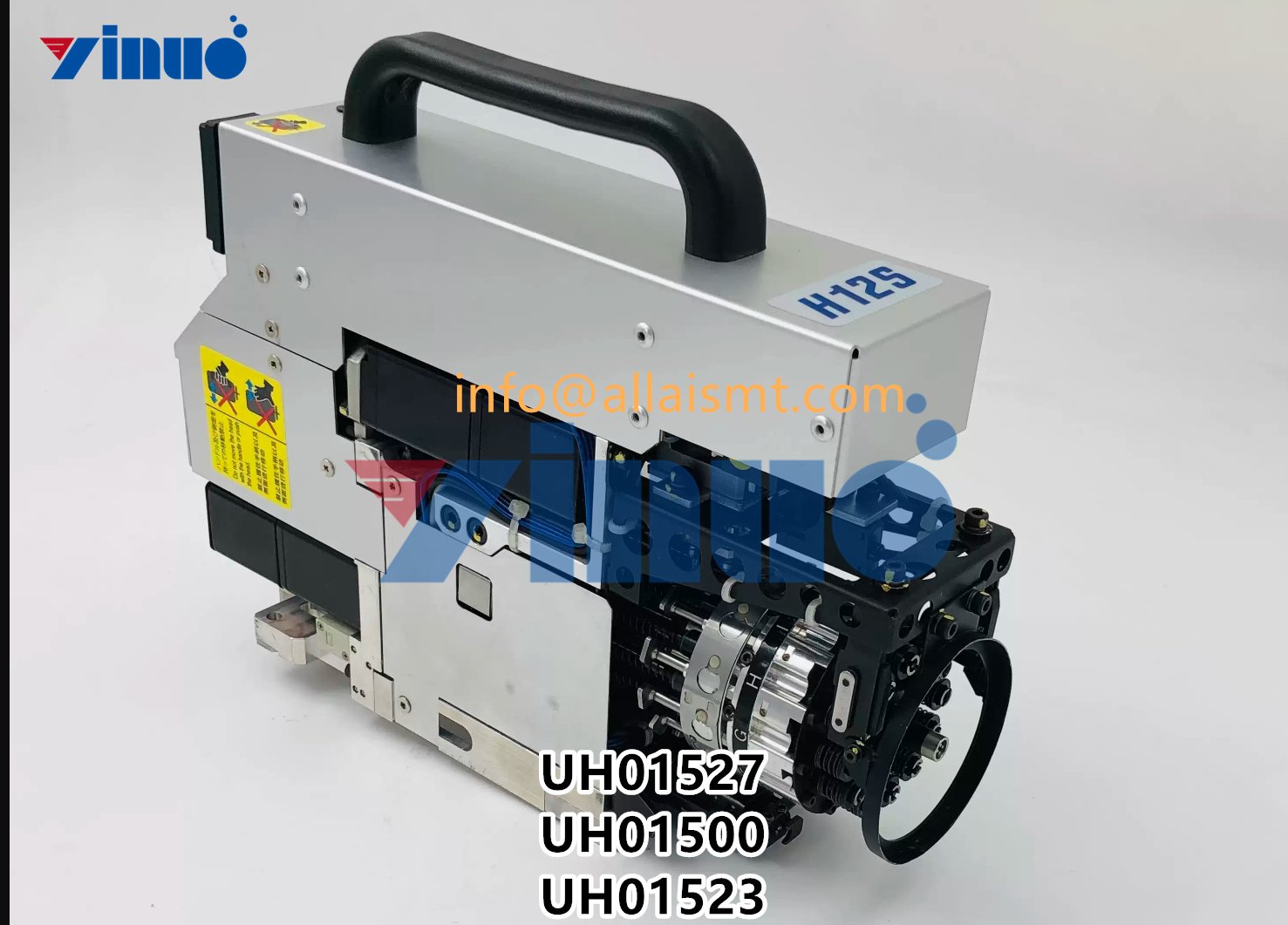

Fuji NXT H12S High-speed head UH01527 UH01500 UH01523 FUJI NXT Placement heads With Auto Backup Pin Equipment
Placement accuracy: high – speed placement heads, it is ±0.038 mm (3σ), with CPK ≥ 1.00.
Applicable component size: From 0402 (or 0201) to 7.5 mm × 7.5 mm.
Maximum component height: 3.0 mm.
Placement speed: 22,500 CPH (Components Per Hour).
Compatible machines: Suitable for modular placement machine platforms such as FUJI NXT M3S, M6S, and M3III.
Substrate support range: Minimum is 48 mm × 48 mm (some data states 50 mm × 50 mm), and maximum is 534 mm × 610 mm (single – track).
Applicable component size: From 0402 (or 0201) to 7.5 mm × 7.5 mm.
Maximum component height: 3.0 mm.
Placement speed: 22,500 CPH (Components Per Hour).
Compatible machines: Suitable for modular placement machine platforms such as FUJI NXT M3S, M6S, and M3III.
Substrate support range: Minimum is 48 mm × 48 mm (some data states 50 mm × 50 mm), and maximum is 534 mm × 610 mm (single – track).
Get a free quote
Please feel free to tell us what you need! we are here to help!
Fuji NXT H12S High-speed head UH01527 UH01500 UH01523 Placement heads
