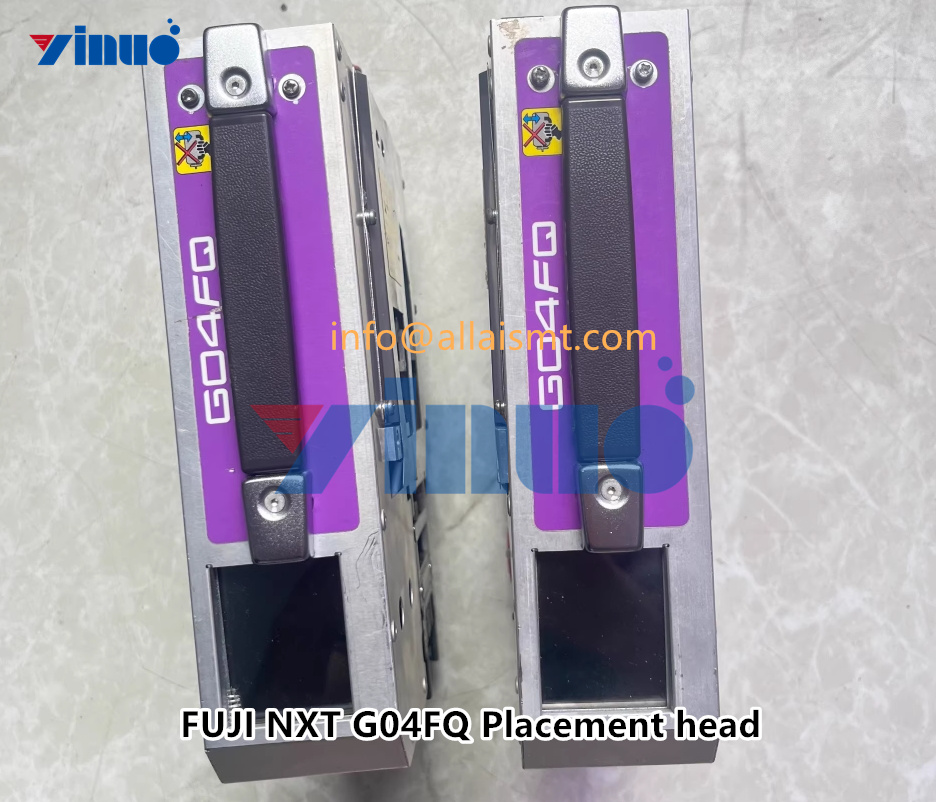

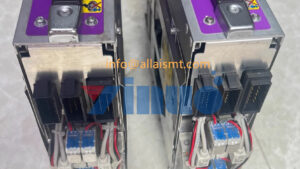

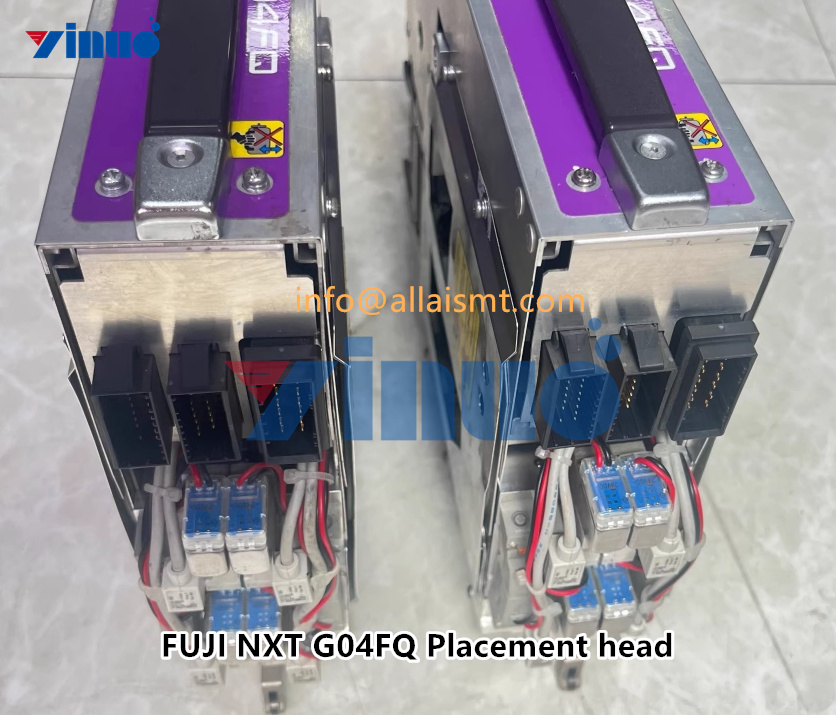

FUJI NXT pick and place machine G04FQ AA7RA37 | SMT Pick-up and Placement Machine

FUJI G04F & G04FQ placement head with 4 fixed nozzles, supports 0402(01005″)-15×15mm components, CSP/BGA, max height 6.5mm. Accuracy ±0.025mm(Cpk≥1.00), speed 7500CPH, compatible with NXT III & IIIc. We provide repair and sales for FUJI, Panasonic, Universal, Siemens placement heads and servo boxes.

Number of Nozzles: It has 4 nozzles (Nozzle quantity: 4), enabling the simultaneous picking and placing of multiple components, thus improving the placement efficiency.
Applicable Component Dimensions: It can handle components sized from 0402 (01005″) to 15 x 15mm. It can also place component types such as CSP and BGA. The maximum height of components is 6.5mm.
Compatible Machine Models: It is suitable for chip – mounting machines of the NXT III and NXT IIIc models.
Placement Accuracy and Speed: The placement accuracy can reach ±0.025mm (3σ), with Cpk ≧ 1.00, and the placement speed is 7500 CPH.
Functional Features: Its 4 nozzles are fixed on the nozzle base, allowing for the simultaneous replacement of nozzles and operations like dipping. It is also equipped with an optical fiber sensor, etc., enabling precise placement and detection of components.
