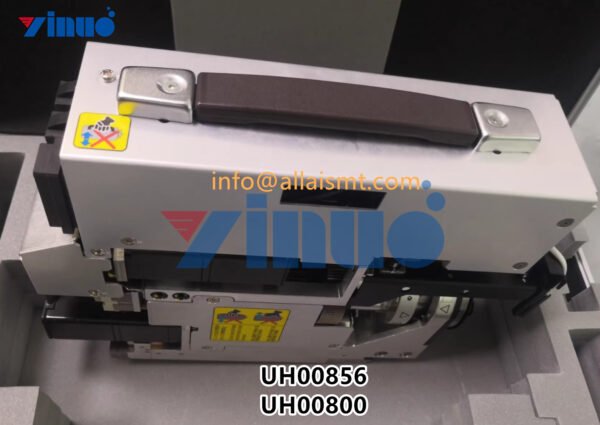

Fuji NXT pick and place machine H04 Placement head AA15Y13 AA15Y18 AA15Y25 UH0800 FUJI NXT H04 Kork Head UH00856
Nozzles: There are 4 suction nozzles, which can grasp multiple components simultaneously to improve efficiency.
Component Compatibility: It can handle components with dimensions ranging from 0402 (01005″) to 38mm×38mm and a maximum height of 9.5mm, being suitable for various common components.
Compatible Machine Models: It is applicable to pick – and – place machines such as NXT III and NXT IIIc.
Accuracy and Speed: The placement accuracy is ±0.050mm (3σ), with Cpk≧1.00.
Function: It is equipped with 19mm disc – shaped suction nozzles, with sizes ranging from 1.0 – 15.0mm. There are various types like ceramic ones, and abundant specifications such as aa06w00, etc., to adapt to different components.
Get a free quote
Please feel free to tell us what you need! we are here to help!
Fuji NXT pick and place machine H04 Placement head AA15Y13 UH00856 UH00800
Fuji NXT pick and place machine H04 Placement head AA15Y13 UH00856 UH00800
Fuji NXT pick and place machine H04 Placement head AA15Y13 UH00856 UH00800
| Part Number | Describe | Specification |
|---|---|---|
| H5273T | BOLT,HEX SOCKET | M03X004 |
| W1021A | WASHER,LOCK | 3M/M |
| PB25025 | COVER,UPPER | |
| K5186N | SCREW,C/R COUNTERSUNK | M03X005(ニッケルメッキ) |
| AA54E04 | COVER | |
| PB06XF1 | COVER,FRONT | |
| K5186N | SCREW,C/R COUNTERSUNK | M03X005(ニッケルメッキ) |
| H5273A | BOLT,HEX SOCKET | M03X005 |
| W1021A | WASHER,LOCK | 3M/M |
| PJ02874 | HANDLE | |
| K5359E | SCREW,HEX SOCKET COUNTERSUNK | M04X008 |
| PB30173 | BKT,WIRING | |
| K5178L | SCREW,C/R PAN | M03X005(ニッケルメッキ) |
| PB09784 | BKT | |
| K5169M | SCREW,C/R COUNTERSUNK | M02X005(ステンレス) |
| K5169H | SCREW,C/R COUNTERSUNK | M02X004(ステンレス) |
| PB23285 | COVER,SIDE | |
| K5186N | SCREW,C/R COUNTERSUNK | M03X005(ニッケルメッキ) |
| PB23277 | COVER,SIDE | |
| K5186N | SCREW,C/R COUNTERSUNK | M03X005(ニッケルメッキ) |
| PB24985 | BKT | |
| K5169H | SCREW,C/R COUNTERSUNK | M02X004(ステンレス) |
| H5264T | BOLT,HEX SOCKET | M02X004 |
| W1020A | WASHER,LOCK | 2M/M |
| PB24973 | BKT | |
| S3243S | SPACER | CB-303E |
| S3243T | SPACER | CB-307E |
| PB27443 | RETAINER,WIRING | |
| K5182K | SCREW,WASHER ASS’Y | M03X020 P=4 ナット(3方 沖) |
| 2WGKHE003500 | RETAINER,WIRING | |
| K5182K | SCREW,WASHER ASS’Y | M03X020 P=4 ナット(3方 沖) |
| H1021H | BATTERY | ER6VLY |
| PS00831 | SHEET | |
| PX05132 | NAMEPLATE,CAUTION | |
| PX03302 | NAMEPLATE,CAUTION | |
| 2WGKHE001101 | NAMEPLATE | |
| XK04861 | BOARD,PRINTED CIRCUIT | |
| 12AGKHF000100 | BOARD,PRINTED CIRCUIT | |
| AA0BX17 | BODY | |
| PX03332 | SEAL,BAR CODE | |
| PX03370 | NAMEPLATE | |
| S1058B | SILENCER | AN120-M3 |
| A5202A | O RING | φ2.4X0.8 |
| H62140 | PLATE | SYJ3000-21-12A |
| XB00763 | VALVE,PRESSURE REDUCING | |
| AA06D10 | ROLER | |
| H5277A | BOLT,HEX SOCKET | M03X012 |
| W1021A | WASHER,LOCK | 3M/M |
| PB79382 | BKT,SENSOR | |
| H5274A | BOLT,HEX SOCKET | M03X006 |
| W1021A | WASHER,LOCK | 3M/M |
| PB02192 | BKT,RETAINER | |
| H5268T | BOLT,HEX SOCKET | M02.5X006 |
| W1020H | WASHER,LOCK | 2.5M/M |
| XS00842 | SENSOR,PRESSURE | |
| XM00146 | MOTOR,AC SERVO | |
| H5275A | BOLT,HEX SOCKET | M03X008 |
| W1010A | WASHER,CONICAL | M-3-L |
| H5274A | BOLT,HEX SOCKET | M03X006 |
| W1010A | WASHER,CONICAL | M-3-L |
| PM04633 | COLLAR | |
| H5268Z | BOLT,HEX SOCKET | M02.5X008 |
| PM48922 | GEAR,PINION | |
| XM00256 | MOTOR,AC SERVO | |
| H5275A | BOLT,HEX SOCKET | M03X008 |
| W1010A | WASHER,CONICAL | M-3-L |
| XK02242 | COUPLING | |
| PM41743 | MANIFOLD | |
| H5275A | BOLT,HEX SOCKET | M03X008 |
| W1010A | WASHER,CONICAL | M-3-L |
| XB03330 | VALVE,SOL | |
| PB22712 | BKT,MOTOR | |
| H5289A | BOLT,HEX SOCKET | M04X012 |
| W1022A | WASHER,LOCK | 4M/M |
| W1040S | WASHER,FLAT | 4M/MX0.8X9(1W-4)（3ヶ所） |
| XM00146 | MOTOR,AC SERVO | |
| PZ28081 | TAPE | |
| PZ28091 | TAPE | |
| H5276A | BOLT,HEX SOCKET | M03X010 |
| W1021A | WASHER,LOCK | 3M/M |
| PM04633 | COLLAR | |
| H5268Z | BOLT,HEX SOCKET | M02.5X008 |
| XP00522 | PULLEY | |
| H45713 | BELT,TIMING | 110-2GT-12 |
| PM41733 | BKT | |
| H5289A | BOLT,HEX SOCKET | M04X012 |
| W1022A | WASHER,LOCK | 4M/M |
| H4098A | BEARING | R-1350ZZ |
| PM089E0 | COLLAR | |
| PM48944 | GEAR,PINION | |
| H4897A | BEARING | AC5-14DBSP2 |
| PB22731 | RETAINER,BEARING | |
| K5169H | SCREW,C/R COUNTERSUNK | M02X004 (ステンレス) |
| PM04723 | NUT | |
| PM41806 | BKT | |
| H5288A | BOLT,HEX SOCKET | M04X010 |
| W1011A | WASHER,CONICAL | M-4-L |
| H4116C | BEARING | DDRF-1140ZZ |
| PB11753 | BKT | |
| H5265A | BOLT,HEX SOCKET | M02X005 |
| W1020A | WASHER,LOCK | 2M/M |
| S61583 | SENSOR | EX-11B-FJ-PN（ビスナ） |
| K5175S | SCREW,C/R PAN | M02X005 (ステンレス) |
| PP01251 | NUT | |
| 2MKHE003402 | PLATE | |
| PM41814 | BKT | |
| H5288A | BOLT,HEX SOCKET | M04X010 |
| W1011A | WASHER,CONICAL | M-4-L |
| PB22745 | BKT,SENSOR | |
| H5273A | BOLT,HEX SOCKET | M03X005 |
| W1021A | WASHER,LOCK | 3M/M |
| PB25373 | BKT,SENSOR | |
| H5275A | BOLT,HEX SOCKET | M03X008 |
| W1021A | WASHER,LOCK | 3M/M |
| W1042A | WASHER,FLAT | 4W－3 |
| S61583 | SENSOR | EX-11A-FJ-PN（ビスナ） |
| K5175S | SCREW,C/R PAN | M02X005 (ステンレス) |
| PH00897 | ARM | |
| H5265A | BOLT,HEX SOCKET | M02X005 |
| PH00907 | ARM | |
| PZ04721 | SPRING,TORSTON | |
| PM46182 | PIN | |
| ST003D | CIR-CLIP | ST-EW-2 (3か 沖) |
| W1039T | WASHER,FLAT | 2.6M/ MXO. 5X5 |
| PM27723 | PTN,ROLER | |
| PM33901 | ROLER | |
| N1074Z | NUT,HEX | M02.5 (ステンレス) |
| PP00143 | BKT,MOTOR | |
| H5275A | BOLT,HEX SOCKET | M03X008 |
| W1021A | WASHER,LOCK | 3M/M |
| W1042A | WASHER,FLAT | 4W－3 |
| XM01531 | MOTOR,STEPPING | |
| K5169R | SCREW,C/R COUNTERSUNK | M02.6X005 (ステンレス) |
| S4077K | SENSOR,PHOTO | PM-F44P |
| H5275A | BOLT,HEX SOCKET | M03X008 |
| W1021A | WASHER,LOCK | 3M/M |
| W1040R | WASHER,FLAT | 3M/MXO.5X7 (1W-3) (3か加工) |
| PP00171 | NUT | |
| AA18D06 | PTN,REFERENCE | |
| H5268X | BOLT,HEX SOCKET | M02.5X010 |
| N1040S | NUT,LOCK | RN5 |
| XP00522 | PULLEY | |
| PM04633 | COLLAR | |
| H5268Z | BOLT,HEX SOCKET | M02.5X008 |
| PM04614 | COLLAR | |
| PP00131 | RETAINER,BEARING | |
| H5265A | BOLT,HEX SOCKET | M02X005 |
| W1020A | WASHER,LOCK | 2M/M |
| H4897A | BEARING | AC5-14DBSP2 |
| XB01665 | BALL SCREW | |
| H5268Z | BOLT,HEX SOCKET | M02.5X008 |
| W1020H | WASHER,LOCK | 2.5M/M |
| PZ12272 | SHAFT | |
| H5274A | BOLT,HEX SOCKET | M03X006 |
| W1021A | WASHER,LOCK | 3M/M |
| W1040R | WASHER,FLAT | 3M/MX0.5X7 (1W-3) (3力加) |
| PG01271 | STOPPER | |
| PM25928 | SLIDER | |
| ST0015 | CIR-CLIP | RTW 12 |
| XB00642 | BEARING,SLIDE | |
| PG01281 | STOPPER | |
| ZMGKHE003200 | ARM | |
| ST027A | CIR-CLIP | STW 5 |
| PM27732 | PIN | |
| PZ04513 | SPRING,TORSION | |
| A5172Z | O RING | SS 10.5 |
| H1163B | PACKING | MYN-8 |
| H4900A | BEARING | 688ZZ |
| PB22721 | RETAINER,BEARING | |
| K5169H | SCREW,C/R COUNTERSUNK | M02X004(ステンレス) |
| R2054L | RING,LOCKING | MN-8-14 |
| AA1TH08 | GEAR | |
| PM48916 | GEAR | |
| PM04893 | COLLAR | |
| PZ39231 | SCREW,C/R PAN | |
| PZ04641 | SPRING | |
| AA0BC08 | GEAR | |
| AA1TK10 | GEAR | |
| PZ18391 | SPRING | |
| PW71313 | COLLAR | |
| PZ41931 | SCREW,C/R PAN | |
| PM71306 | GEAR | |
| H5268X | BOLT,HEX SOCKET | M02.5X010 |
| W1020H | WASHER,LOCK | 2.5M/M |
| PM40913 | COLLAR | |
| H4897C | BEARING | AC8-18DBP5 |
| PM51362 | HOLDER | |
| A513TH | O RING | S-8 |
| H11795 | PACKING | OPA15 |
| PM41793 | RING,FIXED | |
| AA0DW04 | BEARING | |
| H5268Z | BOLT,HEX SOCKET | M02.5X008 |
| W1020H | WASHER,LOCK | 2.5M/M |
| PB22764 | PLATE | |
| H52683 | BOLT,HEX SOCKET | M02.5X005 |
| PM48221 | NUT,ROUND | |
| K5268D | BLOCK,CLAMP | SM-302E |
| N4018T | SCREW,HEX SOCKET SET | M03X003 ヒラボ |
| PM40974 | PUSHER | |
| PM41067 | GEAR | |
| PM71772 | GEAR | |
| PM71782 | GEAR | |
| PM00FH1 | GEAR | |
| H4044N | BEARING | MF85UMC3 |
| PZ30721 | SPRING | |
| AA32X10 | SYRINGE | |
| H2103E | PIN | MRSB1-5.7 |
| AB27504 | SYRINGE | |
| R5004B | ROLER,NEEDLE | φ2X9.8 B2 AW5 B2 |
| PG01112 | O RING | |
| 2MGKHE003300 | O RING | |
| PZ18124 | SPRING,COIL | |
| PM40963 | PIPE | |
| PZ13051 | SPRING,COIL | |
| PM0E1S1 | COLLAR | |
| 2MGKHE003900 | HOLDER,ROTARY | |
| H5276A | BOLT,HEX SOCKET | M03X010 |
| W1010A | WASHER,CONICAL | M-3-L |
| AA0AL04 | FILTER | |
| PH00312 | HOLDER | |
| XH00401 | FILTER | |
| A5188S | O RING | φ3.0X0.5 (FKM70) |
| A51906 | O RING | φ4.20X0.53 (FKM70) |
| PZ14371 | SPRING | |
| H61885 | BALL,STEEL | CR3.0G20 |
| H21927 | PIN,PARALLEL | φ02X06 B種 (h8) |
| XS01186 | SPOOL | |
| A5053C | O RING | φ1.8X0.7 |
| PM35011 | GUIDE | |
| H5267A | BOLT,HEX SOCKET | M02X008 |
| A5054S | O RING | φ17.9X1.1 (NBR) |
| 2MGKHE001000 | RING,FELT | |
| AA17R11 | CHUCK | |
| RH15565 | HARNESS | |
| S3227R | SPACER | C-2002.5 |
| 2AGKHC000800 | BOARD,PRINTED CIRCUIT | |
| HS267A | BOLT,HEX SOCKET | M02X008 |
| W1020A | WASHER,LOCK | 2M/M |
| PB79391 | BKT,Sensor | |
| HS275A | BOLT,HEX SOCKET | M03X008 |
| W1021A | WASHER,LOCK | 3M/M |
| W1042A | WASHER,FLAT | 4W－3 |
| PB30963 | DOG,SW | |
| KS180G | SCREW,C/R PAN | M02X004 0ベネ3シ（3カクロ） |
| PB30974 | DOG,SW | |
| KS180C | SCREW,C/R PAN | M01.7X003 0ベネ3シ（3カクロ） |
| PM08TL1 | FLANGE | |
| N4087K | SCREW,HEX SOCKET SET | M01.6X002 ボルト# |
| HS265A | BOLT,HEX SOCKET | M02X005 |
| W1020A | WASHER,LOCK | 2M/M |
| HS265A | BOLT,HEX SOCKET | M02X005 |
| HS266A | BOLT,HEX SOCKET | M02X006 |
| W1020A | WASHER,LOCK | 2M/M |
| XS01844 | CYLINDER | |
| HS267A | BOLT,HEX SOCKET | M02X008 |
| W1020A | WASHER,LOCK | 2M/M |
| PM5703 | SHAFT | |
| PM55002 | BUSHING,GUIDE | |
| KS1684 | SCREW,C/R COUNTERSUNK | M02X006 (3カクロ) |
| AA53A01 | SENSOR | |
| S40580 | SENSOR | E3T-FD14 2M |
| XS02681 | SLIT | |
| KS175M | SCREW,C/R PAN | M02X004 0ベン3シ（ステンレス） |
| PJ06032 | PLATE,ACRYLIC | |
| HI122D | VALVE,SOL | SYJ3140–5MOU |
| . | GASKET | SYJ3000–14–2 |
| . | SCREW | SY100–33–3 |
| PX03342 | SEAL,BAR CODE | |
| AA93T04 | COVER | |
| PB06XC3 | COVER,FRONT | |
| PS00831 | SHEET | |
| T50032 | HANDLE | THA-192-1 TG> |
| PM0FYT1 | SPACER | |
| K5358A | SCREW,HEX_SOCKET_COUNTERSUNK | M03X010 |
| PB76092 | BKT,WIRING | |
| PB72802 | BKT | |
| PB76122 | BKT | |
| PM02384 | PLATE,GUIDE | |
| H5268N | BOLT,HEX_SOCKET | M02.5X004 |
| W1020H | WASHER,LOCK | 2.5M/M |
| PM023C3 | BKT | |
| H5275A | BOLT,HEX_SOCKET | M03X008 |
| W1021A | WASHER,LOCK | 3M/M |
| W1042A | WASHER,FLAT | 4W－3 |
| H5280A | BOLT,HEX_SOCKET | M03X020 |
| W1021A | WASHER,LOCK | 3M/M |
| W1042A | WASHER,FLAT | 4W－3 |
| PM023D2 | BKT,SENSOR | |
| PB78832 | BKT,WIRING | |
| H5268T | BOLT,HEX_SOCKET | M02.5X006 |
| W1020H | WASHER,LOCK | 2.5M/M |
| PB79642 | RETAINER,WIRING | |
| H5268T | BOLT,HEX_SOCKET | M02.5X006 |
| W1020H | WASHER,LOCK | 2.5M/M |
| S4051R | SENSOR,FIBER | E32-A03-1 1M |
| PB67322 | COVER | |
| PB78962 | COVER | |
| K5255T | SCREW,HEX_SOCKET_BUTTON | M03X006 |
| PB78972 | COVER | |
| K5255T | SCREW,HEX_SOCKET_BUTTON | M03X006 |
| PZ34001 | TUBE | |
| PZ34011 | TUBE | |
| A1038W | AMPLIFIER | E3X-DA41-S 2M |
| PB76114 | BKT | |
| PB78843 | RETAINER,WIRING | |
| H5268N | BOLT,HEX_SOCKET | M02.5X004 |
| W1020H | WASHER,LOCK | 2.5M/M |
| PS02382 | SHEET | |
| PX07331 | SEAL,BAR_CODE | |
| PX07342 | SEAL,BAR_CODE |
