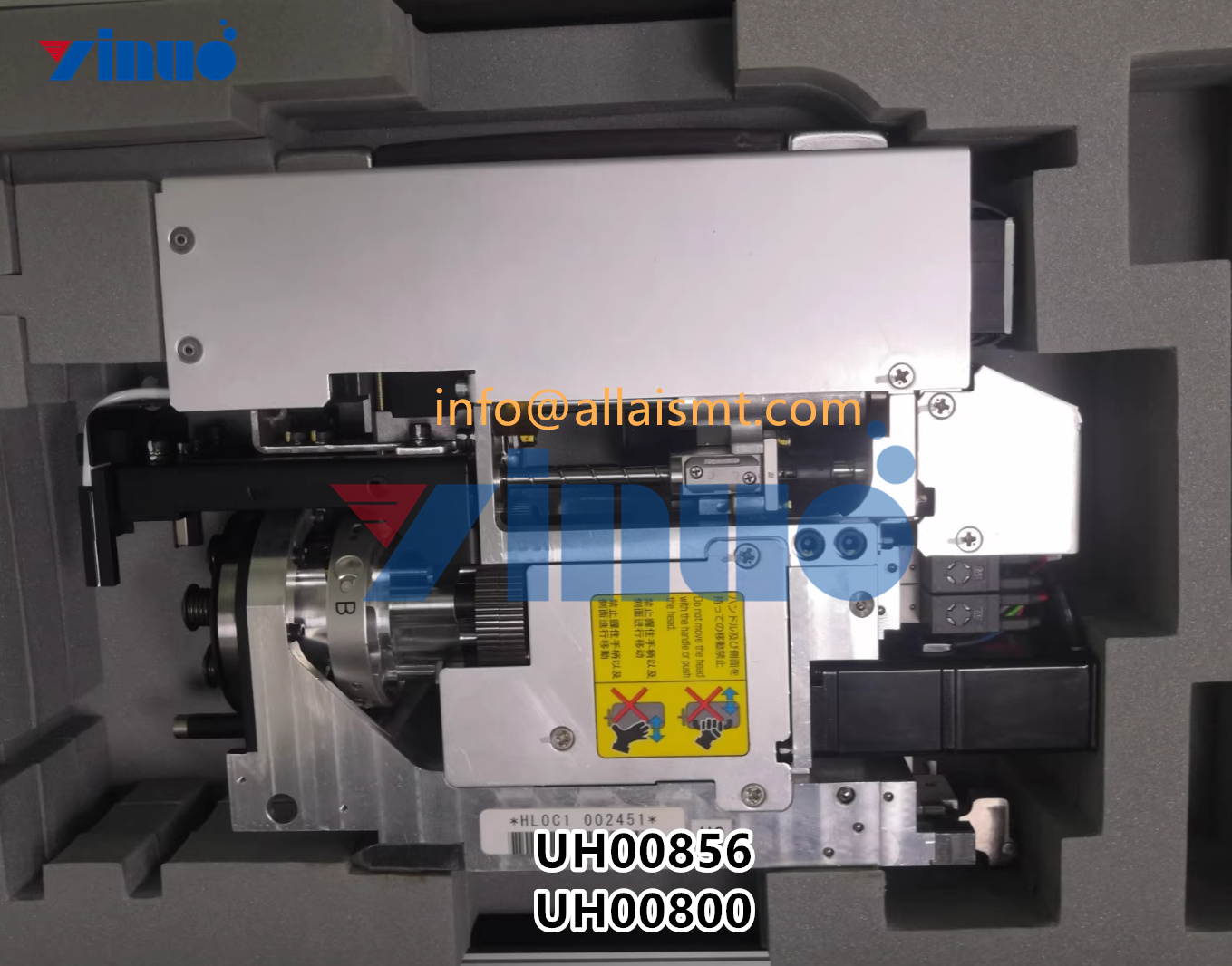

Fuji NXT pick and place machine H04 Placement head AA15Y13 UH00856 UH00800
Fuji NXT pick and place machine H04 Placement head AA15Y13 UH00856 UH00800
Fuji NXT pick and place machine H04 Placement head AA15Y13 UH00856 UH00800
| Part Number | Describe | Specification |
|---|---|---|
| H5273T | BOLT,HEX SOCKET | M03X004 |
| W1021A | WASHER,LOCK | 3M/M |
| PB25025 | COVER,UPPER | |
| K5186N | SCREW,C/R COUNTERSUNK | M03X005(ニッケルメッキ) |
| AA54E04 | COVER | |
| PB06XF1 | COVER,FRONT | |
| K5186N | SCREW,C/R COUNTERSUNK | M03X005(ニッケルメッキ) |
| H5273A | BOLT,HEX SOCKET | M03X005 |
| W1021A | WASHER,LOCK | 3M/M |
| PJ02874 | HANDLE | |
| K5359E | SCREW,HEX SOCKET COUNTERSUNK | M04X008 |
| PB30173 | BKT,WIRING | |
| K5178L | SCREW,C/R PAN | M03X005(ニッケルメッキ) |
| PB09784 | BKT | |
| K5169M | SCREW,C/R COUNTERSUNK | M02X005(ステンレス) |
| K5169H | SCREW,C/R COUNTERSUNK | M02X004(ステンレス) |
| PB23285 | COVER,SIDE | |
| K5186N | SCREW,C/R COUNTERSUNK | M03X005(ニッケルメッキ) |
| PB23277 | COVER,SIDE | |
| K5186N | SCREW,C/R COUNTERSUNK | M03X005(ニッケルメッキ) |
| PB24985 | BKT | |
| K5169H | SCREW,C/R COUNTERSUNK | M02X004(ステンレス) |
| H5264T | BOLT,HEX SOCKET | M02X004 |
| W1020A | WASHER,LOCK | 2M/M |
| PB24973 | BKT | |
| S3243S | SPACER | CB-303E |
| S3243T | SPACER | CB-307E |
| PB27443 | RETAINER,WIRING | |
| K5182K | SCREW,WASHER ASS’Y | M03X020 P=4 ナット(3方 沖) |
| 2WGKHE003500 | RETAINER,WIRING | |
| K5182K | SCREW,WASHER ASS’Y | M03X020 P=4 ナット(3方 沖) |
| H1021H | BATTERY | ER6VLY |
| PS00831 | SHEET | |
| PX05132 | NAMEPLATE,CAUTION | |
| PX03302 | NAMEPLATE,CAUTION | |
| 2WGKHE001101 | NAMEPLATE | |
| XK04861 | BOARD,PRINTED CIRCUIT | |
| 12AGKHF000100 | BOARD,PRINTED CIRCUIT | |
| AA0BX17 | BODY | |
| PX03332 | SEAL,BAR CODE | |
| PX03370 | NAMEPLATE | |
| S1058B | SILENCER | AN120-M3 |
| A5202A | O RING | φ2.4X0.8 |
| H62140 | PLATE | SYJ3000-21-12A |
| XB00763 | VALVE,PRESSURE REDUCING | |
| AA06D10 | ROLER | |
| H5277A | BOLT,HEX SOCKET | M03X012 |
| W1021A | WASHER,LOCK | 3M/M |
| PB79382 | BKT,SENSOR | |
| H5274A | BOLT,HEX SOCKET | M03X006 |
| W1021A | WASHER,LOCK | 3M/M |
| PB02192 | BKT,RETAINER | |
| H5268T | BOLT,HEX SOCKET | M02.5X006 |
| W1020H | WASHER,LOCK | 2.5M/M |
| XS00842 | SENSOR,PRESSURE | |
| XM00146 | MOTOR,AC SERVO | |
| H5275A | BOLT,HEX SOCKET | M03X008 |
| W1010A | WASHER,CONICAL | M-3-L |
| H5274A | BOLT,HEX SOCKET | M03X006 |
| W1010A | WASHER,CONICAL | M-3-L |
| PM04633 | COLLAR | |
| H5268Z | BOLT,HEX SOCKET | M02.5X008 |
| PM48922 | GEAR,PINION | |
| XM00256 | MOTOR,AC SERVO | |
| H5275A | BOLT,HEX SOCKET | M03X008 |
| W1010A | WASHER,CONICAL | M-3-L |
| XK02242 | COUPLING | |
| PM41743 | MANIFOLD | |
| H5275A | BOLT,HEX SOCKET | M03X008 |
| W1010A | WASHER,CONICAL | M-3-L |
| XB03330 | VALVE,SOL | |
| PB22712 | BKT,MOTOR | |
| H5289A | BOLT,HEX SOCKET | M04X012 |
| W1022A | WASHER,LOCK | 4M/M |
| W1040S | WASHER,FLAT | 4M/MX0.8X9(1W-4)（3ヶ所） |
| XM00146 | MOTOR,AC SERVO | |
| PZ28081 | TAPE | |
| PZ28091 | TAPE | |
| H5276A | BOLT,HEX SOCKET | M03X010 |
| W1021A | WASHER,LOCK | 3M/M |
| PM04633 | COLLAR | |
| H5268Z | BOLT,HEX SOCKET | M02.5X008 |
| XP00522 | PULLEY | |
| H45713 | BELT,TIMING | 110-2GT-12 |
| PM41733 | BKT | |
| H5289A | BOLT,HEX SOCKET | M04X012 |
| W1022A | WASHER,LOCK | 4M/M |
| H4098A | BEARING | R-1350ZZ |
| PM089E0 | COLLAR | |
| PM48944 | GEAR,PINION | |
| H4897A | BEARING | AC5-14DBSP2 |
| PB22731 | RETAINER,BEARING | |
| K5169H | SCREW,C/R COUNTERSUNK | M02X004 (ステンレス) |
| PM04723 | NUT | |
| PM41806 | BKT | |
| H5288A | BOLT,HEX SOCKET | M04X010 |
| W1011A | WASHER,CONICAL | M-4-L |
| H4116C | BEARING | DDRF-1140ZZ |
| PB11753 | BKT | |
| H5265A | BOLT,HEX SOCKET | M02X005 |
| W1020A | WASHER,LOCK | 2M/M |
| S61583 | SENSOR | EX-11B-FJ-PN（ビスナ） |
| K5175S | SCREW,C/R PAN | M02X005 (ステンレス) |
| PP01251 | NUT | |
| 2MKHE003402 | PLATE | |
| PM41814 | BKT | |
| H5288A | BOLT,HEX SOCKET | M04X010 |
| W1011A | WASHER,CONICAL | M-4-L |
| PB22745 | BKT,SENSOR | |
| H5273A | BOLT,HEX SOCKET | M03X005 |
| W1021A | WASHER,LOCK | 3M/M |
| PB25373 | BKT,SENSOR | |
| H5275A | BOLT,HEX SOCKET | M03X008 |
| W1021A | WASHER,LOCK | 3M/M |
| W1042A | WASHER,FLAT | 4W－3 |
| S61583 | SENSOR | EX-11A-FJ-PN（ビスナ） |
| K5175S | SCREW,C/R PAN | M02X005 (ステンレス) |
| PH00897 | ARM | |
| H5265A | BOLT,HEX SOCKET | M02X005 |
| PH00907 | ARM | |
| PZ04721 | SPRING,TORSTON | |
| PM46182 | PIN | |
| ST003D | CIR-CLIP | ST-EW-2 (3か 沖) |
| W1039T | WASHER,FLAT | 2.6M/ MXO. 5X5 |
| PM27723 | PTN,ROLER | |
| PM33901 | ROLER | |
| N1074Z | NUT,HEX | M02.5 (ステンレス) |
| PP00143 | BKT,MOTOR | |
| H5275A | BOLT,HEX SOCKET | M03X008 |
| W1021A | WASHER,LOCK | 3M/M |
| W1042A | WASHER,FLAT | 4W－3 |
| XM01531 | MOTOR,STEPPING | |
| K5169R | SCREW,C/R COUNTERSUNK | M02.6X005 (ステンレス) |
| S4077K | SENSOR,PHOTO | PM-F44P |
| H5275A | BOLT,HEX SOCKET | M03X008 |
| W1021A | WASHER,LOCK | 3M/M |
| W1040R | WASHER,FLAT | 3M/MXO.5X7 (1W-3) (3か加工) |
| PP00171 | NUT | |
| AA18D06 | PTN,REFERENCE | |
| H5268X | BOLT,HEX SOCKET | M02.5X010 |
| N1040S | NUT,LOCK | RN5 |
| XP00522 | PULLEY | |
| PM04633 | COLLAR | |
| H5268Z | BOLT,HEX SOCKET | M02.5X008 |
| PM04614 | COLLAR | |
| PP00131 | RETAINER,BEARING | |
| H5265A | BOLT,HEX SOCKET | M02X005 |
| W1020A | WASHER,LOCK | 2M/M |
| H4897A | BEARING | AC5-14DBSP2 |
| XB01665 | BALL SCREW | |
| H5268Z | BOLT,HEX SOCKET | M02.5X008 |
| W1020H | WASHER,LOCK | 2.5M/M |
| PZ12272 | SHAFT | |
| H5274A | BOLT,HEX SOCKET | M03X006 |
| W1021A | WASHER,LOCK | 3M/M |
| W1040R | WASHER,FLAT | 3M/MX0.5X7 (1W-3) (3力加) |
| PG01271 | STOPPER | |
| PM25928 | SLIDER | |
| ST0015 | CIR-CLIP | RTW 12 |
| XB00642 | BEARING,SLIDE | |
| PG01281 | STOPPER | |
| ZMGKHE003200 | ARM | |
| ST027A | CIR-CLIP | STW 5 |
| PM27732 | PIN | |
| PZ04513 | SPRING,TORSION | |
| A5172Z | O RING | SS 10.5 |
| H1163B | PACKING | MYN-8 |
| H4900A | BEARING | 688ZZ |
| PB22721 | RETAINER,BEARING | |
| K5169H | SCREW,C/R COUNTERSUNK | M02X004(ステンレス) |
| R2054L | RING,LOCKING | MN-8-14 |
| AA1TH08 | GEAR | |
| PM48916 | GEAR | |
| PM04893 | COLLAR | |
| PZ39231 | SCREW,C/R PAN | |
| PZ04641 | SPRING | |
| AA0BC08 | GEAR | |
| AA1TK10 | GEAR | |
| PZ18391 | SPRING | |
| PW71313 | COLLAR | |
| PZ41931 | SCREW,C/R PAN | |
| PM71306 | GEAR | |
| H5268X | BOLT,HEX SOCKET | M02.5X010 |
| W1020H | WASHER,LOCK | 2.5M/M |
| PM40913 | COLLAR | |
| H4897C | BEARING | AC8-18DBP5 |
| PM51362 | HOLDER | |
| A513TH | O RING | S-8 |
| H11795 | PACKING | OPA15 |
| PM41793 | RING,FIXED | |
| AA0DW04 | BEARING | |
| H5268Z | BOLT,HEX SOCKET | M02.5X008 |
| W1020H | WASHER,LOCK | 2.5M/M |
| PB22764 | PLATE | |
| H52683 | BOLT,HEX SOCKET | M02.5X005 |
| PM48221 | NUT,ROUND | |
| K5268D | BLOCK,CLAMP | SM-302E |
| N4018T | SCREW,HEX SOCKET SET | M03X003 ヒラボ |
| PM40974 | PUSHER | |
| PM41067 | GEAR | |
| PM71772 | GEAR | |
| PM71782 | GEAR | |
| PM00FH1 | GEAR | |
| H4044N | BEARING | MF85UMC3 |
| PZ30721 | SPRING | |
| AA32X10 | SYRINGE | |
| H2103E | PIN | MRSB1-5.7 |
| AB27504 | SYRINGE | |
| R5004B | ROLER,NEEDLE | φ2X9.8 B2 AW5 B2 |
| PG01112 | O RING | |
| 2MGKHE003300 | O RING | |
| PZ18124 | SPRING,COIL | |
| PM40963 | PIPE | |
| PZ13051 | SPRING,COIL | |
| PM0E1S1 | COLLAR | |
| 2MGKHE003900 | HOLDER,ROTARY | |
| H5276A | BOLT,HEX SOCKET | M03X010 |
| W1010A | WASHER,CONICAL | M-3-L |
| AA0AL04 | FILTER | |
| PH00312 | HOLDER | |
| XH00401 | FILTER | |
| A5188S | O RING | φ3.0X0.5 (FKM70) |
| A51906 | O RING | φ4.20X0.53 (FKM70) |
| PZ14371 | SPRING | |
| H61885 | BALL,STEEL | CR3.0G20 |
| H21927 | PIN,PARALLEL | φ02X06 B種 (h8) |
| XS01186 | SPOOL | |
| A5053C | O RING | φ1.8X0.7 |
| PM35011 | GUIDE | |
| H5267A | BOLT,HEX SOCKET | M02X008 |
| A5054S | O RING | φ17.9X1.1 (NBR) |
| 2MGKHE001000 | RING,FELT | |
| AA17R11 | CHUCK | |
| RH15565 | HARNESS | |
| S3227R | SPACER | C-2002.5 |
| 2AGKHC000800 | BOARD,PRINTED CIRCUIT | |
| HS267A | BOLT,HEX SOCKET | M02X008 |
| W1020A | WASHER,LOCK | 2M/M |
| PB79391 | BKT,Sensor | |
| HS275A | BOLT,HEX SOCKET | M03X008 |
| W1021A | WASHER,LOCK | 3M/M |
| W1042A | WASHER,FLAT | 4W－3 |
| PB30963 | DOG,SW | |
| KS180G | SCREW,C/R PAN | M02X004 0ベネ3シ（3カクロ） |
| PB30974 | DOG,SW | |
| KS180C | SCREW,C/R PAN | M01.7X003 0ベネ3シ（3カクロ） |
| PM08TL1 | FLANGE | |
| N4087K | SCREW,HEX SOCKET SET | M01.6X002 ボルト# |
| HS265A | BOLT,HEX SOCKET | M02X005 |
| W1020A | WASHER,LOCK | 2M/M |
| HS265A | BOLT,HEX SOCKET | M02X005 |
| HS266A | BOLT,HEX SOCKET | M02X006 |
| W1020A | WASHER,LOCK | 2M/M |
| XS01844 | CYLINDER | |
| HS267A | BOLT,HEX SOCKET | M02X008 |
| W1020A | WASHER,LOCK | 2M/M |
| PM5703 | SHAFT | |
| PM55002 | BUSHING,GUIDE | |
| KS1684 | SCREW,C/R COUNTERSUNK | M02X006 (3カクロ) |
| AA53A01 | SENSOR | |
| S40580 | SENSOR | E3T-FD14 2M |
| XS02681 | SLIT | |
| KS175M | SCREW,C/R PAN | M02X004 0ベン3シ（ステンレス） |
| PJ06032 | PLATE,ACRYLIC | |
| HI122D | VALVE,SOL | SYJ3140–5MOU |
| . | GASKET | SYJ3000–14–2 |
| . | SCREW | SY100–33–3 |
| PX03342 | SEAL,BAR CODE | |
| AA93T04 | COVER | |
| PB06XC3 | COVER,FRONT | |
| PS00831 | SHEET | |
| T50032 | HANDLE | THA-192-1 TG> |
| PM0FYT1 | SPACER | |
| K5358A | SCREW,HEX_SOCKET_COUNTERSUNK | M03X010 |
| PB76092 | BKT,WIRING | |
| PB72802 | BKT | |
| PB76122 | BKT | |
| PM02384 | PLATE,GUIDE | |
| H5268N | BOLT,HEX_SOCKET | M02.5X004 |
| W1020H | WASHER,LOCK | 2.5M/M |
| PM023C3 | BKT | |
| H5275A | BOLT,HEX_SOCKET | M03X008 |
| W1021A | WASHER,LOCK | 3M/M |
| W1042A | WASHER,FLAT | 4W－3 |
| H5280A | BOLT,HEX_SOCKET | M03X020 |
| W1021A | WASHER,LOCK | 3M/M |
| W1042A | WASHER,FLAT | 4W－3 |
| PM023D2 | BKT,SENSOR | |
| PB78832 | BKT,WIRING | |
| H5268T | BOLT,HEX_SOCKET | M02.5X006 |
| W1020H | WASHER,LOCK | 2.5M/M |
| PB79642 | RETAINER,WIRING | |
| H5268T | BOLT,HEX_SOCKET | M02.5X006 |
| W1020H | WASHER,LOCK | 2.5M/M |
| S4051R | SENSOR,FIBER | E32-A03-1 1M |
| PB67322 | COVER | |
| PB78962 | COVER | |
| K5255T | SCREW,HEX_SOCKET_BUTTON | M03X006 |
| PB78972 | COVER | |
| K5255T | SCREW,HEX_SOCKET_BUTTON | M03X006 |
| PZ34001 | TUBE | |
| PZ34011 | TUBE | |
| A1038W | AMPLIFIER | E3X-DA41-S 2M |
| PB76114 | BKT | |
| PB78843 | RETAINER,WIRING | |
| H5268N | BOLT,HEX_SOCKET | M02.5X004 |
| W1020H | WASHER,LOCK | 2.5M/M |
| PS02382 | SHEET | |
| PX07331 | SEAL,BAR_CODE | |
| PX07342 | SEAL,BAR_CODE |
