Introduction
The JUKI Label Feeder is an innovative solution for efficient label application in electronics manufacturing. Featuring high-temperature resistant die-cut Kapton tape dots, this feeder is engineered to perform under extreme conditions. The Kapton material provides exceptional thermal stability, ensuring that labels stay securely attached even when exposed to elevated temperatures, which is essential for high-performance electronic devices.
Designed for precision and reliability, the JUKI Label Feeder minimizes the risk of label misalignment during the assembly process. The die-cut design not only enhances adhesion but also allows for quick and easy label application, significantly speeding up production times. This efficiency is critical in high-demand manufacturing environments where time and accuracy are paramount.
Moreover, the JUKI Label Feeder is easy to integrate into existing JUKI equipment, providing flexibility for various production configurations. Its durable construction guarantees a long service life, reducing the need for frequent replacements and maintenance. Yinuo Electronics is China’s largest custom feeder exporter and manufacturer, with highly competitive pricing, fast delivery, and very reliable quality. Our website is: www.esmte.com | Contact email: info@allaismt.com | Video channel: https://www.youtube.com/@allaismt/videos | WhatsApp: +8613760481664.

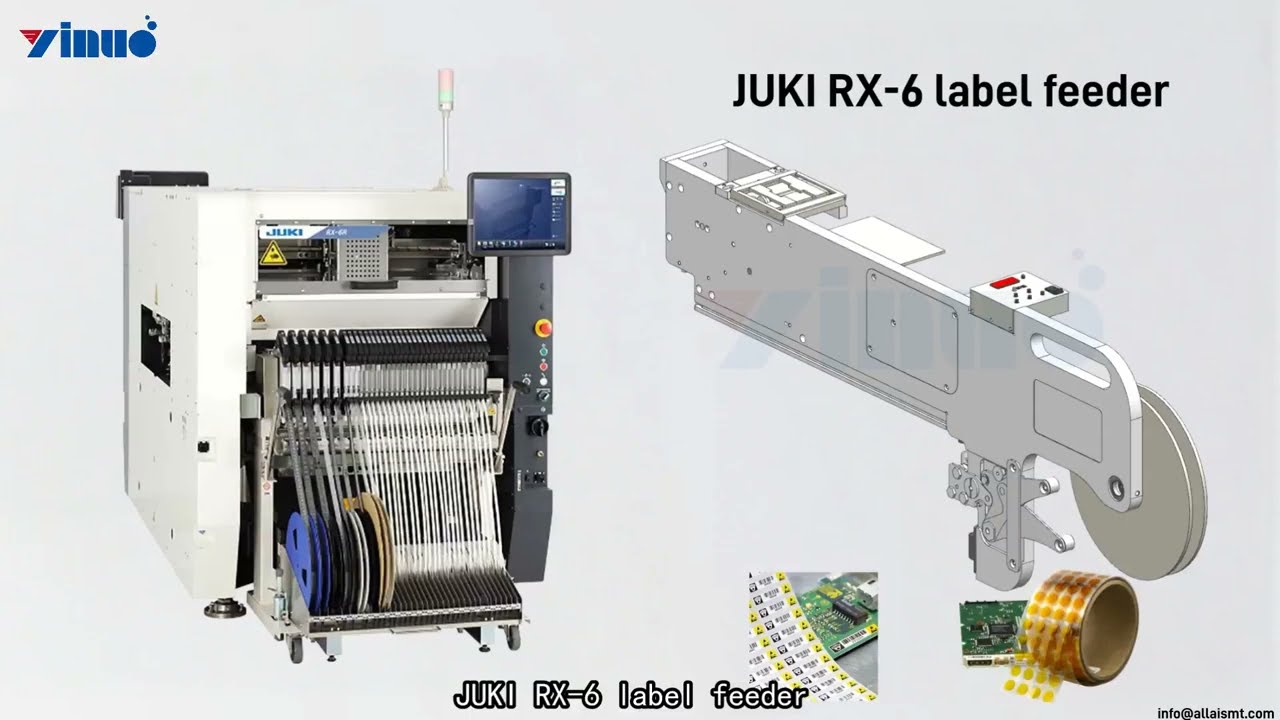

JUKI Label Feeder
Applying Die Cut Kapton Tape Dots via the JUKI Label Feeder
Die cut Kapton tape dots are essential in electronics manufacturing for EMI shielding, electrical insulation, and conformal masking during soldering. Precise application of these polyimide dots onto PCBs requires an accurate feeding mechanism, and the JUKI Label Feeder provides this by indexing Kapton dot carrier tape to the pick position for automated placement. The feeder uses standard tape reels, advancing the tape step by step to present each dot cleanly to the placement nozzle, enabling high-speed, repeatable application.
The JUKI Label Feeder’s performance is driven by its precision tape advance mechanism, which maintains minimal positional deviation at high indexing speeds. Adjustable feed pitch accommodates different dot spacings, while the tape guide system ensures the carrier strip remains aligned. Consistent tension control prevents common issues with polyimide films, like wrinkling or curling. The feeder also minimizes static buildup along the tape path, preserving the integrity of the thin adhesive dots.
On the production floor, the feeder offers fast changeovers with a quick-load reel system and tool-free tape threading. Operators can swap reels and resume production within minutes. Its low-maintenance drive system ensures long service intervals, and its durable construction withstands demanding factory conditions. For manufacturers applying Kapton dots, the JUKI label feeder delivers a reliable, high-performance solution that balances speed, precision, and durability in high-volume production.
Die Cut Kapton Tape Dots
Die Cut Kapton Tape Dots in PCB Applications
| Type | Application | Material | Properties | Common Uses |
|---|---|---|---|---|
| EMI Shielding Dots | Provides electromagnetic interference (EMI) shielding for sensitive components. | Polyimide (Kapton) | High thermal resistance, excellent electrical insulation, flexible | Used in RF (radio frequency) components, circuit traces |
| Insulation Dots | Acts as a thermal insulator between components to prevent overheating. | Polyimide (Kapton) | High-temperature resistance, excellent electrical insulation | Power supply units, high-voltage circuits |
| Protection for Soldering | Protects specific areas of the PCB during reflow soldering. | Polyimide (Kapton) | Heat-resistant, adhesion during soldering, flexible | Used in reflow soldering processes to avoid heat damage |
| Board-Level Protection Dots | Protects sensitive PCB areas during testing, handling, or shipping. | Polyimide (Kapton) | Heat-resistant, stable adhesive, durable | Used for protection during testing or storage |
| PCB Pad Protection Dots | Protects PCB pads from damage during assembly or handling. | Polyimide (Kapton) | Adhesive strength, heat resistance, stable in high temperatures | Prevents contamination or damage to pads |
| Date & Model Code Dots | Used for labeling and tracking purposes, often with serial numbers or QR codes. | Polyimide (Kapton) | High adhesive strength, excellent durability, resistant to chemicals | For traceability in production or for warranty marking |
Die Cut Kapton Tape Dots
https://www.youtube.com/@allaismt
For more information about the JUKI Label Feeder, please send an email to
We will respond to your inquiry promptly and provide you with detailed information about our products and services.
