ASM Label Feeder – Compatible ASM Pick-and-Place Machines
| 1.1 Machine Compatibility Overview | ||||||||
| ASM Machine Series | Specific Models | Feeder Interface Platform | ||||||
| SIPLACE D Series | D1, D2, D3, D4, D4i | D/H Legacy Interface | ||||||
| SIPLACE H/HS Series | HF, HF3, HS50, HS60 | D/H Legacy Interface | ||||||
| SIPLACE S Series | S23, S25, S27HM, F3, F4, F5 | S Series Interface | ||||||
| SIPLACE X Series S | X1 – X4 (multi-gantry) | X Interface | ||||||
| SIPLACE SX Series | SX1, SX2, SX4, SX+ | X Interface (Unified) | ||||||
| SIPLACE TX Series | TX1, TX2 | X Interface (SmartFeeder X) | ||||||
| SIPLACE TX micron | TX micron | X Interface | ||||||
| SIPLACE XS Series | XS Series | X Interface | ||||||
| SIPLACE V Series | SIPLACE V (latest) | X Interface (full backward compat.) | ||||||
| SIPLACE CA2 | CA2 | Dedicated Interface | ||||||
| 1.2 Feeder Interface Platform Overview | ||||||||
| Interface Platform | Compatible Machines | Key Features | ||||||
| SIPLACE X Interface | X, SX, TX, XS, V Series | Contactless inductive power + data; hot-swap; unified feeder platform | ||||||
| SIPLACE D/H Legacy Interface | D Series, H/HS Series, S Series | Mechanical latch; earlier standard | ||||||
| SmartFeeder X | Primarily TX Series | Auto-detects pitch; electronic drive; real-time torque adjustment | ||||||
ASM Label Feeder – Label Dimension Specifications
| 1.1 Label Body Dimensions | ||||||||
| Parameter | Specification | Notes | ||||||
| Minimum Label Size (W × L) | 3mm × 3mm | Some variants: 3mm × 3mm min. | ||||||
| Maximum Label Width | ≤ Tape width (max ≤ 98mm) | Depends on feeder tape width | ||||||
| Maximum Label Length / Height | Up to 98mm | Wider tape → larger label support | ||||||
| Label Thickness Range | 0.02mm – 1mm | Including liner (total stack thickness) | ||||||
| 1.2 Carrier Tape & Reel Specifications | ||||||||
| Parameter | Specification | Notes | ||||||
| Carrier Tape (Liner) Width | 45 / 90 / 135mm (standard); ≤70mm (X/SX/TX) | Custom widths available | ||||||
| Liner Thickness | 0.05mm – 1mm | Optimal: 0.05mm | ||||||
| Reel Inner Diameter | 76.2mm (standard); 100mm (custom) | — | ||||||
| Reel Max Outer Diameter | 200mm | — | ||||||
| Reel Max Load | ≤ 3 kg | — | ||||||
| Feed Pitch | Programmable | — | ||||||
| 1.3 Feeder Physical Dimensions & Weight | ||||||||
| Tape Width | Dimensions (L×W×H, mm) | Weight (kg) | ||||||
| 45mm | 635 × 45 × 180 | 3.5 | ||||||
| 90mm | 710 × 90 × 255 | 6.1 | ||||||
| 135mm | 640 × 135 × 155 | 8.6 | ||||||
| X / SX / TX Series | 485 × 115 × 100 | 4.75 | ||||||
ASM Label Feeder – Electrical & Performance Specifications
| Parameter | Specification | Notes | ||||||
| Operating Voltage | DC 24V | Universal for all variants | ||||||
| Operating Current | Avg. 80mA, Peak 1A | — | ||||||
| Drive Motor | Stepper motor / Servo motor | Varies by variant | ||||||
| Placement Accuracy (X/Y) | ±0.1mm – ±0.3mm | — | ||||||
| Feed Angle Accuracy | ±0.5° | — | ||||||
| Feed Speed | 0 – 95mm/s (10-level adjustable) | — | ||||||
| Feed Method | Front-push peel (peel then pick) | — | ||||||
| Output Mode | Single-lane / Multi-lane simultaneous | Can peel 2+ labels at once | ||||||
| Counter Range | 0 – 9,999,999 | — | ||||||
| Interval Time Setting | 0.1 – 2s | — | ||||||
| Position Sensor | Fiber optic sensor + amplifier | — | ||||||
| Control Feature | Closed-loop, anti-step-loss, real-time torque adj. | — | ||||||
| Placement Rate | > 99.7% | — | ||||||
| Body Material | Hard aluminum alloy + surface treatment | — | ||||||
| Certifications | RoHS / ISO / CE | — |
ASM Label Feeder – Supported Component / Material Types
| 1.1 Label Types | ||||||||
| Material Name | Substrate | Typical Application | ||||||
| 1D Barcode Label | Paper / PET | PCB traceability, part number identification | ||||||
| QR Code Label | Paper / PET | MES system traceability, work order management | ||||||
| DataMatrix Label | PET, high-resolution print | High-density ID for miniature components | ||||||
| Serial Number Label | Paper / PET / PI | Unique product serial number identification | ||||||
| Asset Label | Heavy-duty adhesive back | Equipment asset management | ||||||
| Security / Anti-counterfeit Label | Laser / Holographic / Security ink | Brand protection | ||||||
| Lot / Date Label | Thermal paper / Coated paper | Production batch identification | ||||||
| RFID Label (reel-form) | Composite material with chip | Wireless traceability (custom nozzle required) | ||||||
| 1.2 Label Material Reference | ||||||||
| Material | Characteristics | Typical Application | ||||||
| Thermal Paper | Ink-free, heat-activated, low cost | General labels, consumer electronics | ||||||
| Coated Paper | Smooth surface, sharp print quality | Barcode / QR code labels | ||||||
| PET (Polyester Film) | Heat-resistant, chemical-resistant, waterproof | Automotive / industrial electronics | ||||||

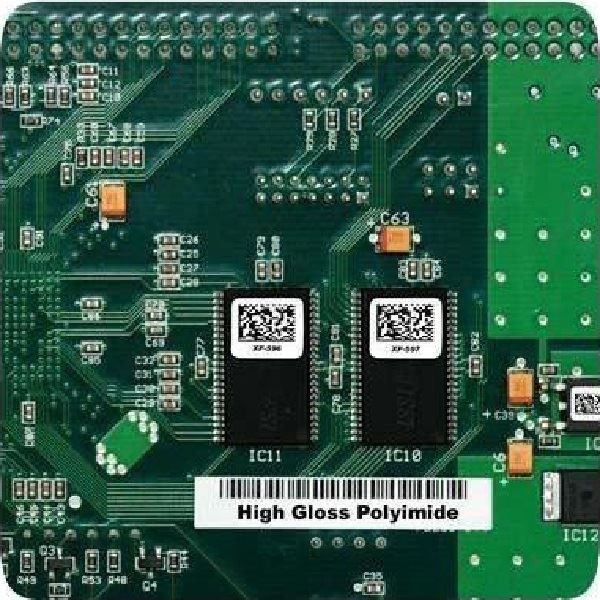

| Polyimide Film (PI / Kapton) | Heat resistance ≥ 200°C | High-temp / aerospace / medical | ||||||
| Laser / Holographic Material | Anti-counterfeit, anti-copy | Brand protection, security labels | ||||||
| 1.3 Non-Label Flexible Materials (Extended Support) | ||||||||
| Material Name | Description | Typical Application | ||||||
| FPC Steel Reinforcement | Thin metal sheet | FPC stiffening and support | ||||||
| Mylar Tape | Polyester film, various thicknesses | Insulation, fixation, high-temp protection | ||||||
| Foam | EVA / PU foam | Cushioning, shock absorption, sealing | ||||||
| Filter Mesh | Non-woven fabric / metal mesh | Dust filtering on vents | ||||||
| High-Temperature Tape | Polyimide (Kapton) etc. | Reflow soldering masking / protection | ||||||
| Aluminum Oxide Heat Sink Sheet | Thin metal sheet | Thermal conduction / heat dissipation | ||||||
| Protective Film | PP / PE / PET film | Surface protection | ||||||
| Plastic Sheets | PP / PE / PVC | Clips, spacers | ||||||
